Ford F-250 6.4 Power Stroke: Servicing and Repairs Done Right in New Zealand
Think of the F-250 6.4 Power Stroke as a diesel semi in a pickup suit. It hauls serious weight, tows with authority, and turns heads on the motorway. But even a beast that makes 350 horsepower and 881 Newton metres of torque from the factory has its Achilles heels, and the 6.4 Power Stroke has a few famous ones. Knowing what they are before they strand you on the Southern Motorway is exactly why we see so many of these trucks roll into our Penrose workshop.
What the 6.4 Power Stroke Actually Is
The 6.4 litre twin turbo V8 diesel in the F-250 is a big, complex engine. It runs a 6400cc displacement with a bore and stroke of 98.2 by 105.0 mm, a compression ratio of 17.5:1, and it breathes through two turbos in series: a smaller high pressure unit spooling first, handing off to a larger low pressure turbo at higher loads. The result is that chest flattening torque curve that makes these trucks so capable as a tow vehicle. The brain managing all of it is a Siemens/Continental SID902 ECU, a sophisticated unit that communicates across multiple vehicle modules and needs proper factory level tools to read correctly.
In the New Zealand market, the F-250 6.4 is a relatively rare but well used truck. Most are privately imported and have covered serious kilometres towing boats, trailers or machinery. By the time owners bring them to us they often have unresolved warning lights, cooling concerns, or turbo noise they have been ignoring for longer than they should.
-

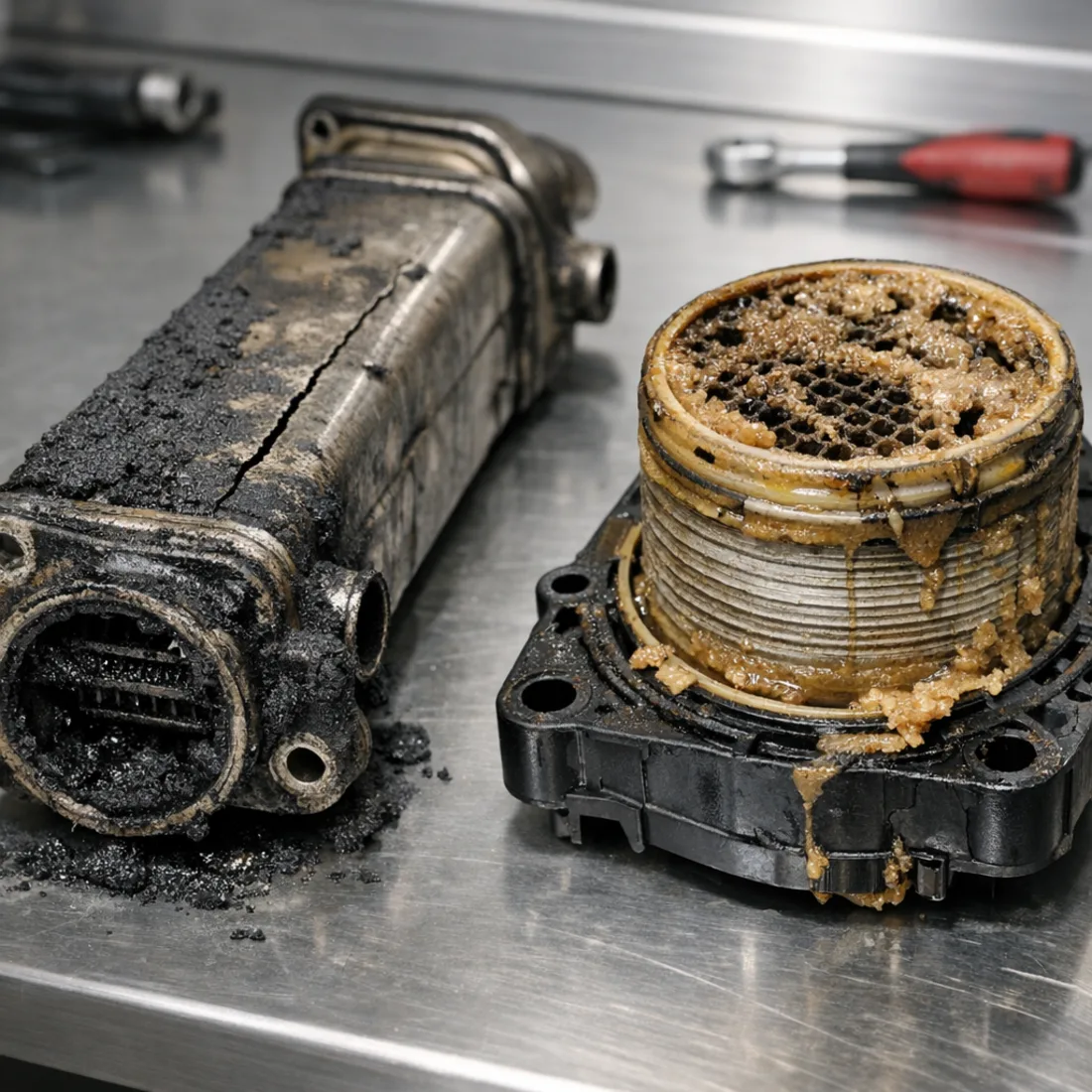

Cooling System Failure: the oil cooler clogs, oil and coolant mix, coolant temperatures climb on long pulls, and milky residue appears under the oil filler cap. Left alone this escalates to head gasket failure.
-
High Pressure Turbo Failure: the smaller high pressure turbo runs extremely hot, wears its bearings on high mileage examples, and starts to leak oil or lose boost, showing as a drop in low end response, a faint whine or rattle, and smoke on hard acceleration.
-
EGR Cooler Cracking and Clogging: thermal cycling cracks the cooler core, letting coolant into the intake, or chokes it with carbon, raising intake temperatures. Symptoms include white steam from the exhaust, rising coolant consumption, and a sweet smell from the intake.
-
Leaking Injectors: internal injector leakage causes hard starts, rough idle, excessive fuel consumption, and raw fuel smell from the exhaust.
-
Up Pipe Cracking: the up pipes connecting the exhaust manifolds to the turbo system crack at the flex section, reducing turbo efficiency and creating an audible ticking or hissing under load.
-
DPF Regeneration Problems: trucks used on short trips never complete a full regen, the DPF loads up, the amber warning appears, then escalates to a red warning if the filter reaches critical loading.
-
Cold Start and Glow Plug Faults: a failed glow plug controller or seized glow plugs cause hard starts, misfires on cold idle, and a rough first few minutes of running.
Real data drives the repair, which means no unnecessary parts replaced and no faults missed.

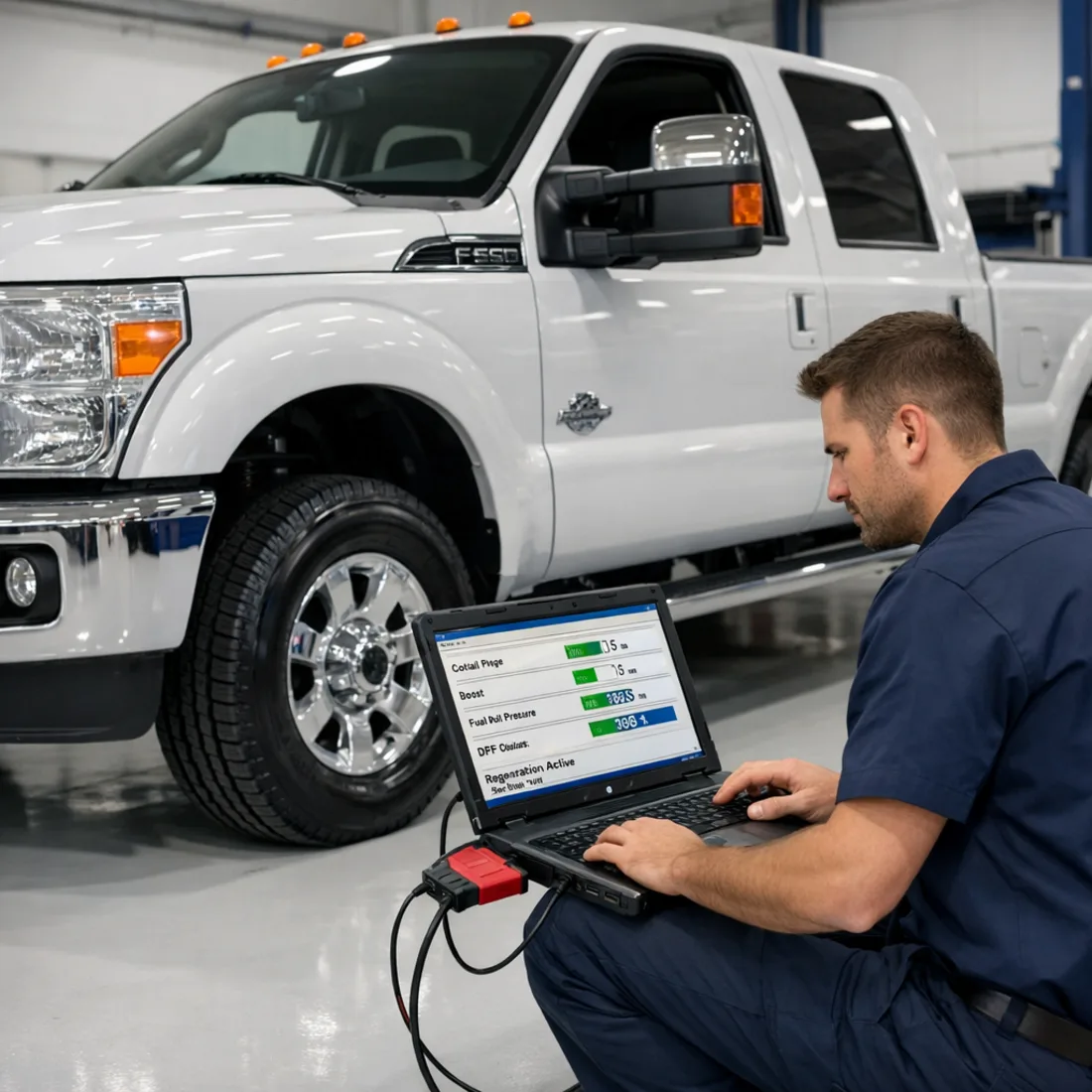

We use Ford IDS and FDRS with a compatible VCM interface to access live engine data, run injector return flow tests, and command the turbo actuators through their full range.
Generic scan tools read generic faults. The 6.4 Power Stroke's SID902 ECU talks to multiple vehicle modules across a network, and without the right software you see partial data at best. We use Ford IDS and FDRS with a compatible VCM interface, the same platform the factory uses, to access live engine data, read injection quantity trim values per cylinder, run forced DPF regeneration cycles, carry out injector return flow tests, and command the turbo actuators through their full range. That means we can confirm whether a turbo is mechanically worn or just not being commanded correctly, check whether a regen failure is a sensor issue or a physically blocked filter, and see exactly which injector is leaking rather than guessing.
The F-250 runs a complex electrical architecture across its modules, and faults do not always surface as a simple engine light. Intermittent no start events, module communication errors, and charging system faults all require proper wiring diagnosis. Our auto electrical team handles wiring repairs, module diagnostics, and sensor replacement across the whole vehicle, including the glow plug controller circuit, injector wiring, and turbo actuator harnesses that are common fault points on the 6.4.
A truck this capable deserves to be kept in proper mechanical shape. We fit genuine and OEM grade brand new parts as standard on every repair and service, so there are no compromises on quality in a vehicle that works this hard.
Get your F-250 booked in with a proper specialist.

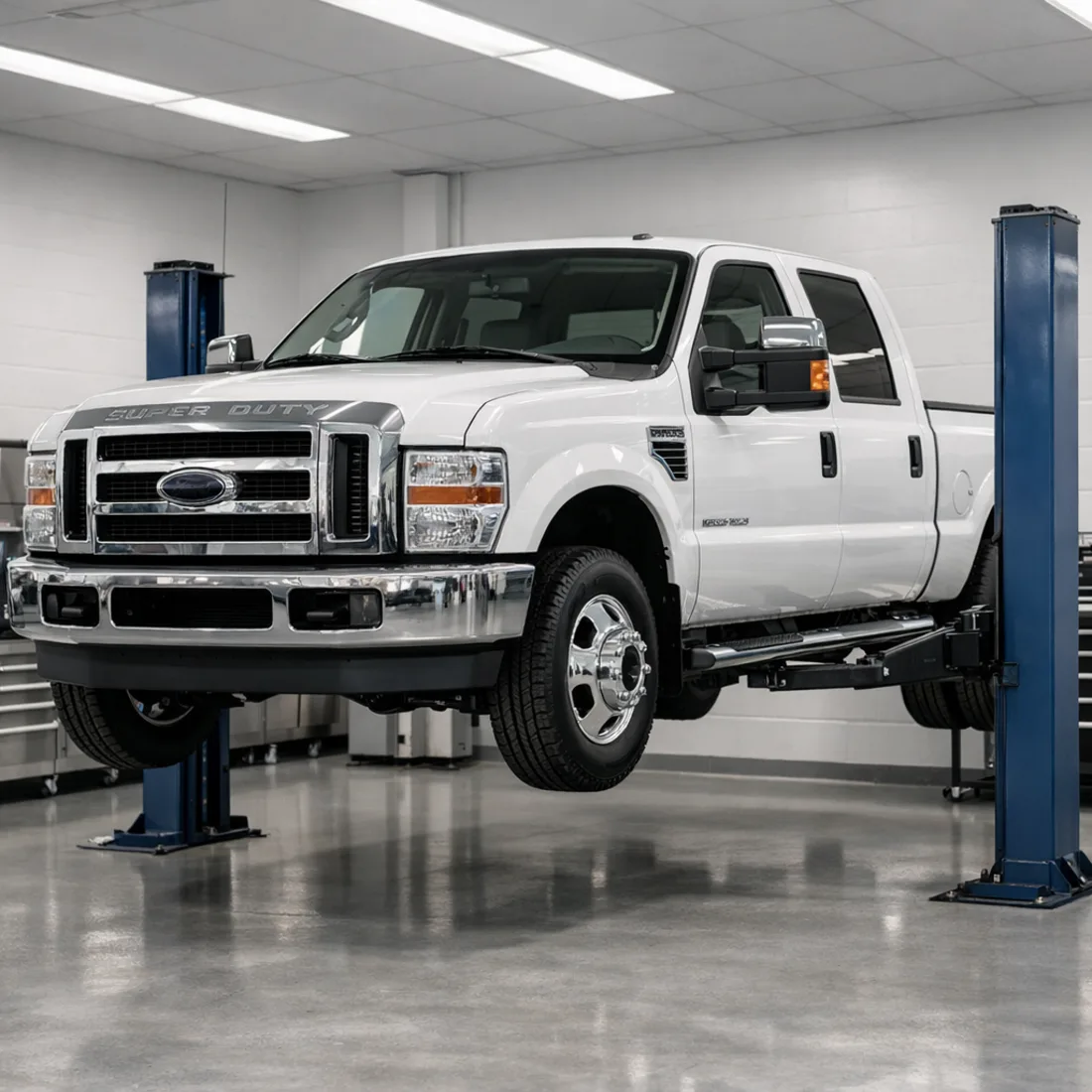

Routine Servicing Worth Booking Before Things Go Wrong
The 6.4 Power Stroke needs full synthetic diesel engine oil that meets the factory specification, changed at the intervals Ford specifies or sooner if the truck is working hard. This engine has two fuel filters, a primary water separator and a secondary high pressure filter, and both need regular attention. Dirty fuel filters starve the high pressure fuel pump, which is an expensive unit to replace. Air filter, cabin filter, and coolant condition all get checked and serviced at the same visit. A healthy cooling system is especially important on this engine given its history of oil cooler and EGR cooler issues.
Glow plugs on the 6.4 should be replaced proactively because seized plugs are a significant job to extract from the head if they break. Drive belts, tensioners and idlers wear over time and a failed belt on a running diesel is a bad day. For brake servicing on these trucks, the rotors and pads see heavy loads given the vehicle's weight and towing use, so we inspect and measure them at every service. Suspension components, particularly the front axle joints and ball joints, are worth checking on any truck that has done real work.
Our routine service covers: engine oil and filter with the correct full synthetic diesel grade; primary and secondary fuel filter replacement; air filter and cabin filter; glow plug and glow plug controller inspection and replacement; cooling system service including coolant flush and oil cooler inspection; EGR cooler cleaning or replacement; DPF inspection and forced regeneration or cleaning; drive belt, tensioner and idler assessment; and brake pad and rotor inspection and replacement.
How We Actually Diagnose the 6.4 Power Stroke
Generic scan tools read generic faults. The 6.4 Power Stroke's SID902 ECU talks to multiple vehicle modules across a network, and without the right software you see partial data at best. We use Ford IDS and FDRS with a compatible VCM interface, the same platform the factory uses, to access live engine data, read injection quantity trim values per cylinder, run forced DPF regeneration cycles, carry out injector return flow tests, and command the turbo actuators through their full range.
That means we can confirm whether a turbo is mechanically worn or just not being commanded correctly, check whether a regen failure is a sensor issue or a physically blocked filter, and see exactly which injector is leaking rather than guessing. Real data drives the repair, which means no unnecessary parts replaced and no faults missed. Our auto electrical team also handles the glow plug controller circuit, injector wiring, and turbo actuator harnesses that are common fault points on the 6.4.
More Torque, Better Tow Response
The SID902 ECU in the 6.4 Power Stroke responds well to calibration work. For a truck used to pull heavy loads, extra torque in the mid range makes towing feel substantially more controlled and effortless.
Our Stage 1 tune lifts output from the stock 350 horsepower and 881 Newton metres to 390 horsepower and 930 Newton metres, a gain of 40 horsepower and 49 Newton metres. The tune works within the drivetrain's safe limits and is delivered as a proper ECU file write, not a piggyback device. Additional options available include EGR OFF, DPF OFF, DTC Removal, FLAPS, Vmax and Adblue work for off road or track use only. Any defeat of emissions equipment will affect WOF compliance and is only legal for vehicles used off public roads.
If you want to understand what is possible, our power gains page has the detail on how we approach diesel performance. Talk to us about a file service for the SID902 ECU.
Frequently Asked Questions
The questions we get most. Something else on your mind? Get in touch.
