Mercedes Benz B 220d Servicing and Repairs in Penrose
The B 220d looks like a school run people mover, and for plenty of Auckland families it is exactly that. Short hops to Remuera Grammar, a dash to Pak'nSave, back home. Repeat. The problem is that the OM654 diesel engine under the bonnet was engineered for open road cruising, not the constant stop start of city life, and the emissions hardware pays the price faster than most owners realise. By the time the amber warning light appears on the instrument cluster, the damage has usually been quietly building for months. That is the bit the brochure never mentions.
The Engine Behind the Badge
Every W247 B 220d sold in New Zealand runs the same unit: Mercedes Benz's OM654 2.0-litre four cylinder diesel. It is a genuinely modern engine, with a 1950cc displacement, an 82.0 mm bore paired with a 92.3 mm stroke, and a compression ratio of 15.5:1. The factory calibration delivers 190 hp and 400 Nm of torque, which is more than enough grunt for a family hatch of this size. Fuel delivery is handled by a high pressure common rail system, ignition assistance comes from a set of glow plugs rather than spark plugs, and the timing is chain driven rather than belt driven. That last point matters: a timing chain should last the life of the engine, but only if the oil is right and the service intervals are kept.
The ECU is a Bosch MD1CP001, which is worth knowing because it affects both diagnostics and tuning. Generic scan tools often return incomplete or misleading data on this platform. Getting accurate readings means using the right interface, and we will come back to that shortly.
-
DPF regeneration failure from constant short suburban runs, leading to a blocked filter, limp condition or dash warning
-
EGR system carbon build up causing rough idling, loss of throttle response, increased fuel consumption and an engine management light
-
AdBlue SCR system and NOx sensor faults, ranging from a warning light through to the car refusing to restart after a set number of key cycles
-
Timing chain rattle on cold start and oil dilution from failed DPF regenerations pushing raw diesel past the piston rings and into the sump
The difference between a proper diagnosis and a code clear and see approach is often the difference between a repair that lasts and one that comes back in three months.
We use Mercedes XENTRY and DAS through a genuine C4 or C6 multiplexer, the same platform factory authorised dealers use.

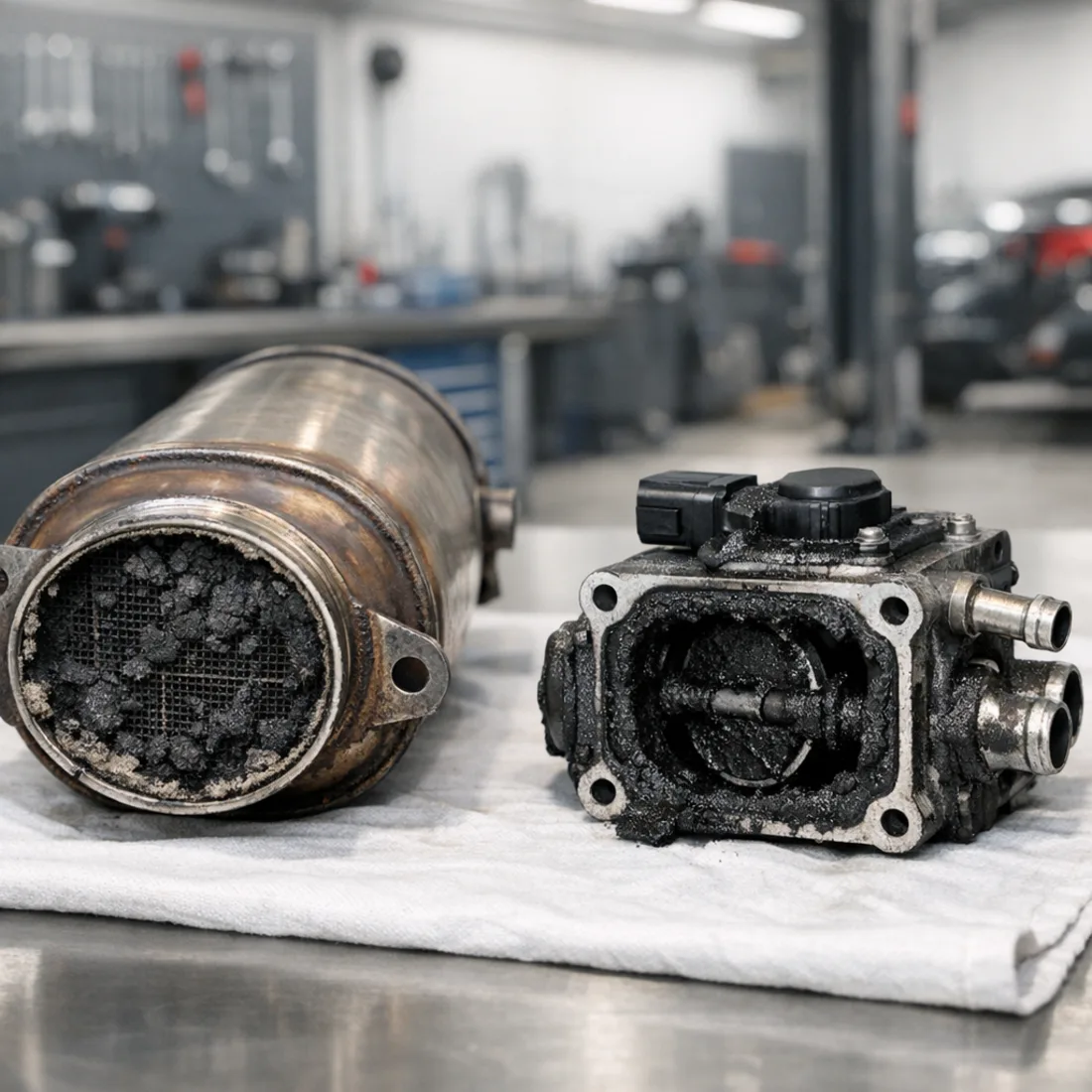

The OM654 is a solid unit when it is well maintained and used properly. When it is not, the same three areas cause most of the headaches our team sees on the hoist. The diesel particulate filter needs to reach a high exhaust temperature to burn off the soot it collects. That temperature is almost impossible to achieve on short suburban runs. The filter loads up faster than it can clean itself, and eventually the car enters a limp condition or throws a warning on the dash. Left alone, the DPF can become so blocked that it restricts exhaust flow and damages the engine. We diagnose the exact soot load and ash load using Mercedes XENTRY connected via a genuine C4 or C6 interface, then recommend cleaning, forced regeneration or, in severe cases, replacement. Where a customer intends to use the vehicle exclusively on a closed course or off road, DPF off solutions are available, but it is important to understand that removing or bypassing emissions hardware will affect WOF compliance on a road registered vehicle.
The exhaust gas recirculation valve and its associated passages coke up over time, especially on cars doing mostly low load city driving. A sticky or failed EGR valve causes rough idling, a noticeable loss of throttle response, increased fuel consumption, and can trigger a yellow engine management light. We clean the system and test the valve's operation through live data rather than just reading a fault code, because a code alone does not tell you whether the valve is actually moving correctly. EGR off calibrations are available for off road and track use, noting the same WOF caution that applies to DPF work. The B 220d also uses an AdBlue selective catalytic reduction system to meet emissions standards. The NOx sensors that monitor this system are a known wear item, and the AdBlue injector can also fail or become contaminated. Our team reads the full SCR dataset through XENTRY, identifies whether the fault is the sensor, the injector, the pump module or the dosing unit, and fixes the actual cause rather than clearing the code and hoping for the best. A cold start rattle that settles within a few seconds is the classic early warning of timing chain wear or inadequate oil pressure at start up. On the OM654, failed or incomplete DPF regenerations can also push raw diesel past the piston rings and into the sump, diluting the oil and accelerating wear across the entire engine. If your oil smells faintly of diesel or the level rises between services, that is a red flag worth investigating immediately. We check for oil dilution as part of our diesel service process on this engine.
Get your B 220d booked in with a proper diesel specialist.
Routine Servicing Worth Getting Right
The OM654 is a low SAPS engine, meaning it requires a specific oil type to protect both the engine internals and the emissions hardware downstream. Using the wrong oil grade or a non approved product can shorten DPF life significantly. We use full synthetic oil that meets or exceeds the current Mercedes Benz factory specification for this engine, every time, and we replace the filter to match. It is a detail that genuinely matters on this platform.
Our car servicing work on this model covers engine oil and filter to the correct low SAPS specification, air filter replacement to protect the turbo and intake, fuel filter service for the high pressure common rail system, cabin filter replacement, wiper blades, and drive belt inspection and replacement. On the diesel specific side, glow plugs are a wear item that rarely announces itself dramatically. A hard cold start or a slight misfire on a cold morning is usually the first sign. We test each plug individually rather than replacing the set blind. We also cover NOx sensor inspection and replacement, DPF pressure differential sensor service, AdBlue level and injector system check, and EGR valve and intake cleaning.
The B Class is a compact MPV that carries families and gear, so the braking system works harder than you might expect. Pads and rotors on the front axle wear at a reasonable rate, but the rear setup on the W247 can catch owners off guard because the calipers are electric park brake units that need to be wound back with the correct software rather than the old school hand tool. Our brake repair service covers both axles correctly, including the electronic park brake procedure, brake rotor machining or replacement, and brake fluid flush to maintain hydraulic performance.
Diagnosing It Properly, Not Just Clearing Codes

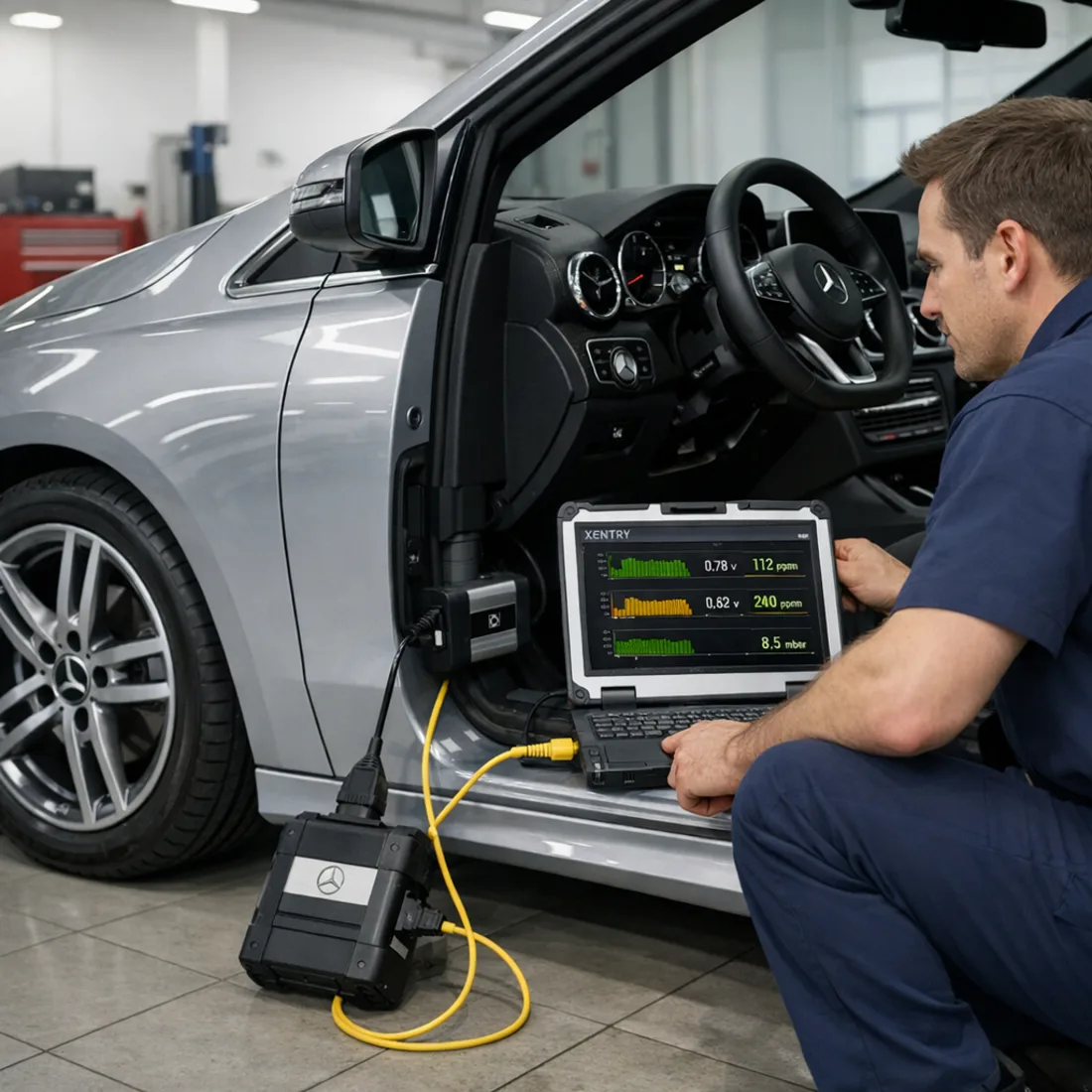

Mercedes Benz vehicles communicate on a diagnostic architecture that generic scan tools only partially support. We work with Mercedes XENTRY and DAS through a genuine C4 or C6 multiplexer interface, which is the same platform the factory authorised dealers use. That means we can access every control module on the car, read live sensor data from the NOx sensors and DPF pressure differential sensors in real time, perform forced DPF regenerations, run actuator tests on the EGR valve, and reset adaptations correctly after a repair.
The difference between a proper diagnosis and a code clear and see approach is often the difference between a repair that lasts and one that comes back in three months. For anything related to keys, immobilisers or module programming, our car programming and coding service handles it end to end, again using the correct Mercedes tooling rather than third party workarounds.
Stage 1 Tuning on the Bosch MD1CP001
The factory calibration on the MD1CP001 ECU is conservative, which is normal for a mainstream family car that needs to pass emissions tests and suit a wide range of drivers. The hardware underneath is capable of considerably more.
Our Stage 1 tune for the B 220d lifts output from the stock 190 hp and 400 Nm to 230 hp and 480 Nm, a gain of 40 hp and 80 Nm achieved through a revised fuel and boost map written specifically for this ECU and engine combination. The result is noticeably stronger mid range torque, which is exactly where a diesel does its best work in real driving. The engine does not need to be modified mechanically to hold these numbers. Additional calibration options include DTC removal for race and off road use, start/stop system disable, EGR off calibration for off road and track use only, and DPF off calibration for off road and track use only. Note that removing or bypassing emissions hardware will affect WOF compliance on a road registered vehicle.
For full details on what the calibration involves and what to expect, see our power gains and tuning information.
