Toyota Yaris 1.0i Servicing, Diagnostics and Repairs in Auckland
Think of the Yaris as the small backpack that carries more than it looks like it should. It slips through traffic, parks in spots that leave SUV owners quietly furious, and returns fuel economy figures that make a trip to the petrol station feel almost optional. The 1.0i three cylinder does a remarkable job of punching above its cubic capacity, and across Auckland you see them everywhere, from first car purchases to city run arounds for people who simply know what works. But even the most sensible little cars accumulate kilometres, and the 1KR FE engine has a handful of quirks worth knowing about before they become expensive surprises.
The 1KR FE Engine: Small Capacity, Real Character
The 1KR FE is a 998 cc three cylinder petrol producing 68 hp and 90 Nm of torque in factory trim. It runs a 10.0:1 compression ratio with a bore and stroke of 69.0 mm by 66.7 mm, which gives it a slightly undersquare character that rewards steady, consistent driving more than hard revving. The engine management is handled by a Bosch ME7.9.52 ECU, a capable unit that talks cleanly to the right diagnostic tools when you need to dig into what is actually happening inside the engine.
As three cylinders go, the 1KR FE is genuinely robust. It is not chasing performance records, it is chasing longevity and fuel economy, and on both counts it largely delivers. That said, three cylinders means each one is doing a disproportionate share of the work compared with a four cylinder of similar output. When something starts to slip, you tend to feel it more immediately. That is not a weakness, it is just physics, and it means staying on top of the known weak points is especially worthwhile here.
-
Oil Consumption and the Rattle You Should Not Ignore: Older 1KR FE engines can develop a tendency to consume more oil than they should between services. On a three cylinder, low oil pressure reaches the upper engine components faster, and that faint rattle on cold start or at idle is not something to sleep on. Catching it early keeps it cheap.
-

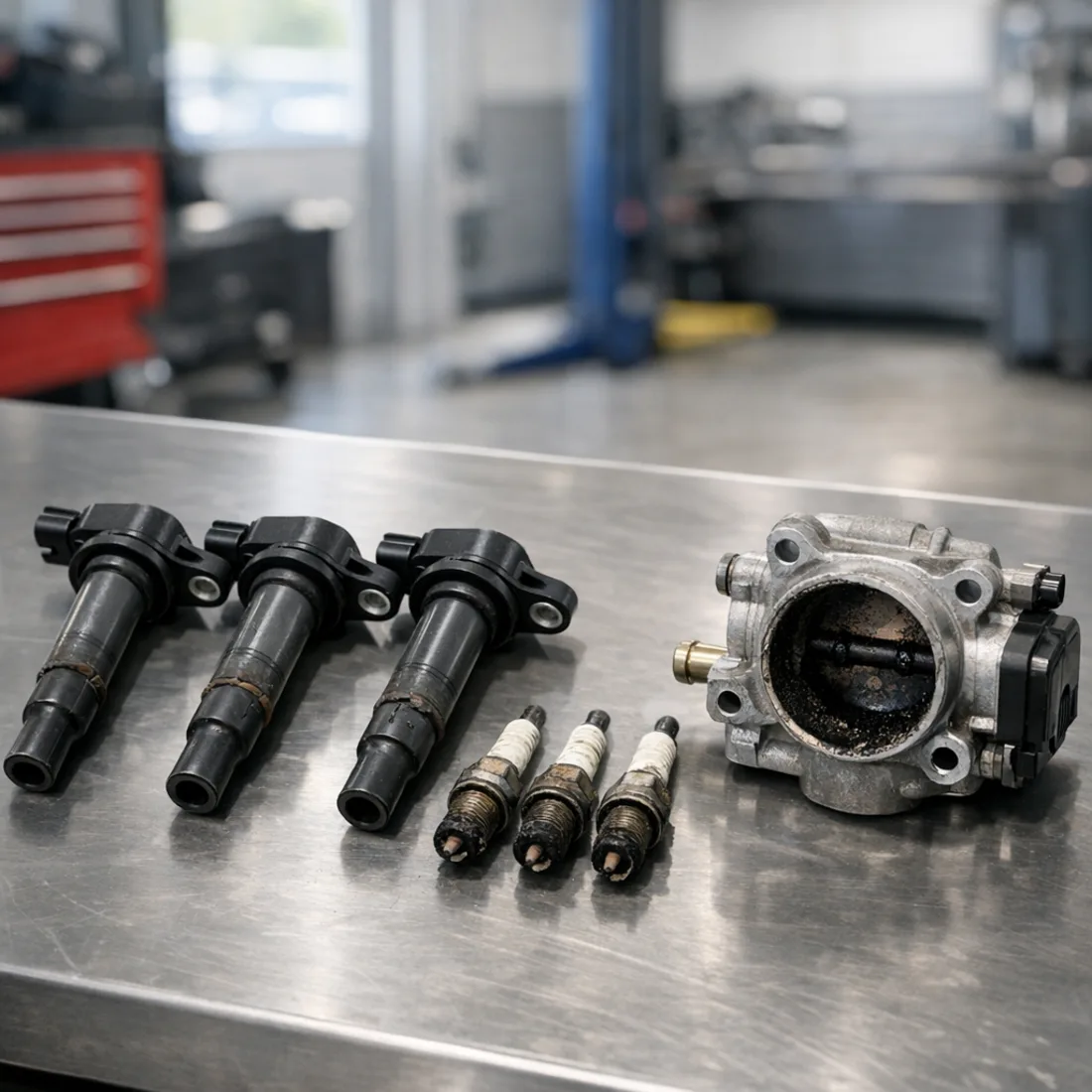

Ignition Coils, Spark Plugs and the Lumpy Idle: One lazy ignition coil or one tired spark plug takes out a full third of the engine's combustion events. The result is a rough idle, a noticeable shudder at lower revs, a misfire code stored in the ECU, and sometimes a flashing yellow check engine light. Running on a soft coil for too long pushes unburned fuel into the exhaust and can damage the catalytic converter.
-
Carbon Build Up and Throttle Body Hesitation: City driving, lots of short trips, and years of stop start use leave carbon deposits on the throttle body and intake tract. This tends to show up as a hesitation when pulling away from traffic lights, an uneven or hunting idle, or a slight stall when coming to a stop. A proper throttle body clean and idle relearn procedure through Toyota Techstream restores the smooth response the engine had when it left the factory.
-
Water Pump and Thermostat on Higher Mileage Cars: A thermostat stuck open means the engine never fully reaches operating temperature, showing up as poor fuel economy and a heater that barely takes the edge off a cold Auckland morning. A failing water pump can introduce a subtle coolant leak that goes unnoticed until the temperature gauge starts climbing. Replacing them proactively during a coolant service is far more sensible than dealing with an overheated engine.
One lazy ignition coil takes out a full third of the engine's combustion events.
New plugs and coils as a set, with the correct plug gap for the 1KR FE, sorts it cleanly.

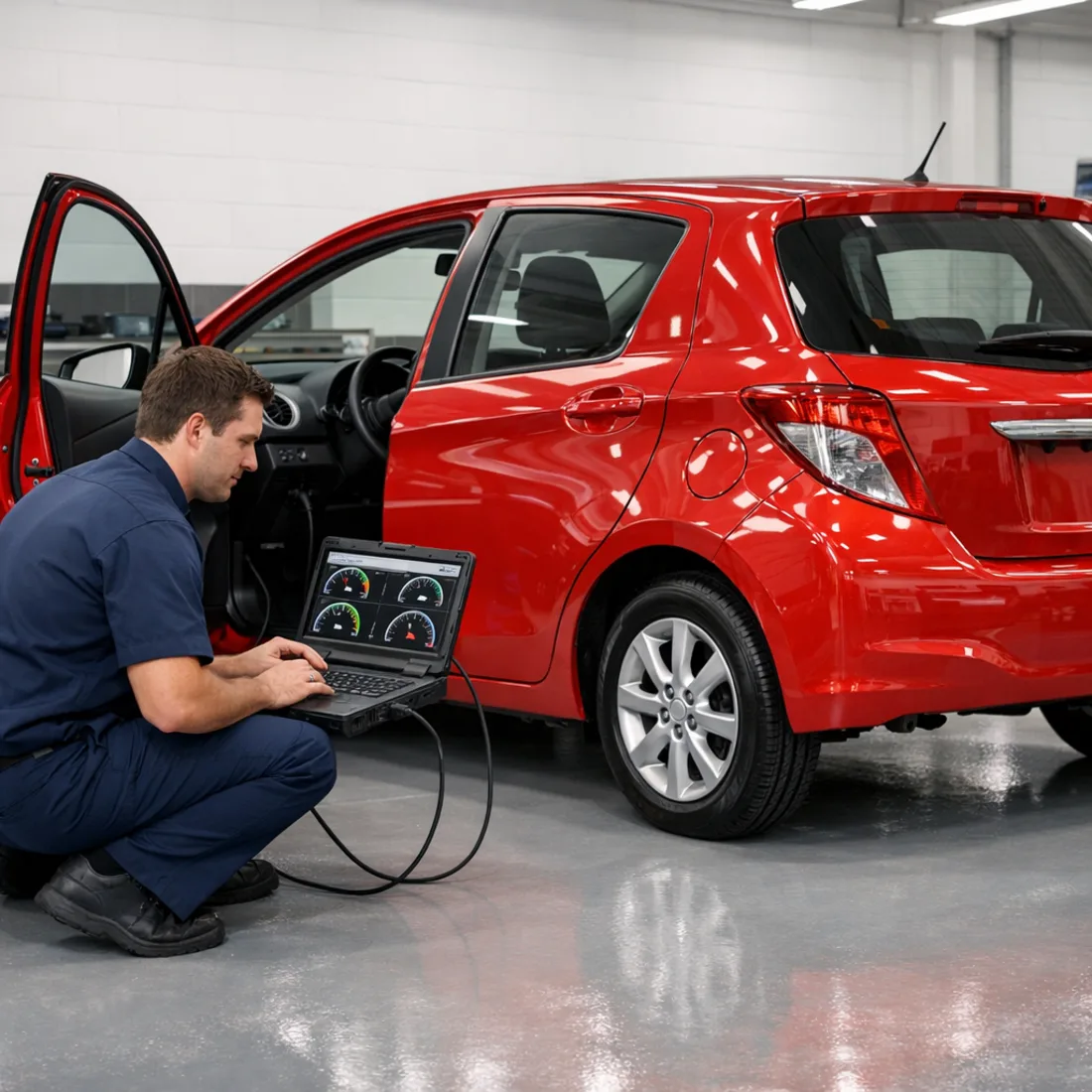

We use Toyota Techstream with the correct vehicle interface, which is the same platform Toyota dealers use. A generic scan tool will read a misfire code and tell you there is a problem. Techstream reads live data streams from the 1KR FE in real time, so we can watch fuel trim correction, coil dwell time, throttle position sensor response, coolant temperature behaviour and idle stabilisation all at once. We can see whether a fault is an actual component failure or a sensor reporting an intermittent signal. That means we fix the right thing the first time rather than working through a parts list.
The Yaris generation that runs the 1KR FE also uses Toyota's immobiliser system, and key programming, ECU replacements and transponder matching all require the right platform to complete correctly. If you have lost a key, need a replacement ECU matched to the car, or are dealing with an immobiliser fault, our team handles immobiliser and key programming using Techstream rather than generic tools that often fail to complete the authorisation sequence. Electrical gremlins on older Yarises, from faulty sensors to wiring faults, get diagnosed properly rather than guessed at.
Get your Yaris booked in with a proper specialist.
Routine Servicing That Keeps It Running Well
The 1KR FE is specified for a low viscosity full synthetic oil that meets or exceeds the Toyota factory requirement for this engine. Getting the grade right matters on a small three cylinder because the clearances are tight and the oil film has less margin. We change the oil filter at every service, the air filter on schedule, and the cabin filter when it is due rather than when it becomes obvious. Spark plugs go in as a fresh set, not one at a time. Drive belts get inspected and replaced before they leave you stranded. These are not upsells, they are the items that protect the investment you already made in the car.
Our car servicing covers the full scope from a basic oil change through to a comprehensive inspection, and we use genuine and OEM grade brand new parts as standard across every job. Nothing secondhand, nothing reconditioned where a new part is available and appropriate. We also cover brake pad and rotor replacement on the Yaris, including a check of the brake fluid condition and caliper operation. Suspension components, wheel bearings and the timing chain tensioner all get attention on higher mileage cars because they tend to reach their service life around the same time.
How We Diagnose It Properly
We use Toyota Techstream with the correct vehicle interface, which is the same platform Toyota dealers use. That distinction matters more than it sounds. A generic scan tool will read a misfire code and tell you there is a problem. Techstream reads live data streams from the 1KR FE in real time, so we can watch fuel trim correction, coil dwell time, throttle position sensor response, coolant temperature behaviour and idle stabilisation all at once. We can see whether a fault is an actual component failure or a sensor reporting an intermittent signal. That means we fix the right thing the first time rather than working through a parts list.
If you are not sure whether your Yaris needs a service, a diagnosis, a repair or all three, bring it in and we will tell you honestly what it needs and what can wait. We are at Unit 26, 930 Great South Road, Penrose, Auckland 1061, and our team is ready to take your Yaris from tired to sorted.
A Mild Tune for the 1KR FE
The Bosch ME7.9.52 ECU responds well to calibration work. In a car that weighs very little, 15 extra Nm of torque at the right point in the rev range is genuinely noticeable, particularly when joining motorway traffic or carrying a full passenger load. All tuning is done through the ECU using calibrated files rather than piggyback modules.
Our Stage 1 tune for the 1KR FE takes the factory output from 68 hp and 90 Nm up to 76 hp and 105 Nm, a gain of 8 hp and 15 Nm of torque. We also offer DTC removal, a pop and bang crackle map for those who want a bit more character on the overrun, a decat option for off road or track use (note that removing the catalytic converter will affect WOF compliance and is not legal for road use), FLAPS adjustment and Vmax removal.
You can read more about what realistic power gains look like on small displacement engines before booking, or request a file service directly.
